• Wall mounted housing
  • Indoor
  • Choice of colours
  • Curved edge design. Modern look
  • Interactive or non-interactive installation
  • Portrait or landscape orientation

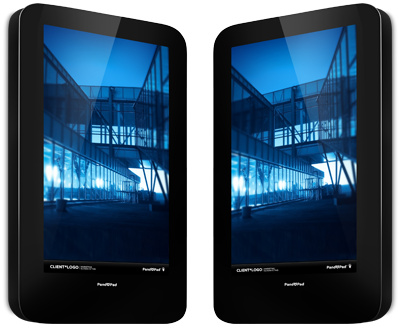

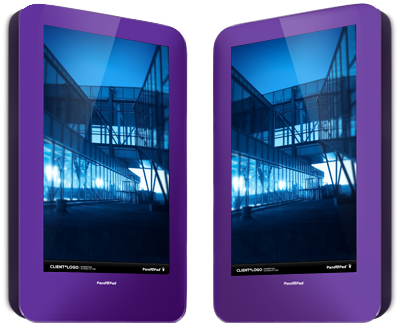

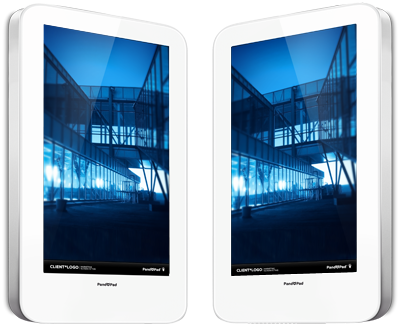

Color options

First View

  • 22" high resolution commercial grade touch or non-touch screen
  • Wall mounted unit
  • Integrated PC


Portrait orientation :
  • diagonal size: 22" (55cm)
  • display frame: 30 x 51 cm
  • resolution: 1080 x 1920
  • 16.6 million colours
Landscape orientation :
  • diagonal size: 22" (81cm)
  • display frame: 51 x 30 cm
  • resolution: 1920 x 1080
  • 16.6 million colours


  • Natural ventilation (noiseless)
  • Service port for easy access
  • Adjustable wall gap for easier wiring
  • Adjustable display frame to accommodate screens of different thickness

Schematic Diagram and Dimensions

  • Width:  30 cm
  • Depth: 10 cm
  • Height: 50 cm
  • Weight (approx.): 5 kg


Suited for indoor wall mounted installations. Coated in white or black. Customer can specify other colours for coating, or standard or metallic paint, or gold or silver imitation coating, or have it completely covered by a plastic foil.


Secure (locked) service port for access to mounting screws and switches/wiring.  All wiring and connections are inside the cabinet and cannot be physically accessed without the key. Service port is located at the top of the display frame, hidden from user’s view.
