PandoPad®
WALL
32
- Wall mounted housing
- Indoor

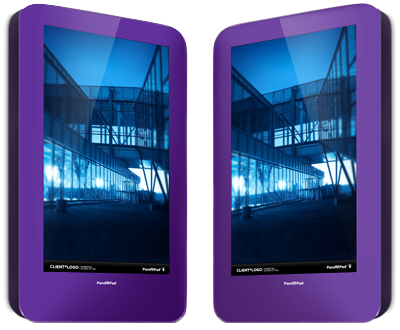

- Choice of colours
- Curved edge design. Modern look
- Interactive or non-interactive installation
- Portrait or landscape orientation
First View
- 32" high resolution commercial grade touch or non-touch screen
- wall mounted unit
- Integrated PC
Screen
Portrait orientation
- diagonal size: 32" (81cm)
- display frame: 39 x 70 cm
- resolution: 1080 x 1920
- 16.6 million colours
Landscape orientation
- diagonal size: 32" (81cm)
- display frame: 70 x 39 cm
- resolution: 1920 x 1080
- 16.6 million colours
Details
- natural ventilation (noiseless)
- service port for easy access
- adjustable wall gap for easier wiring
- adjustable display frame to accommodate screens of different thickness
Landscape:
- width: 99cm
- depth: 8cm
- height: 59cm
- weight (approx.): 18kg

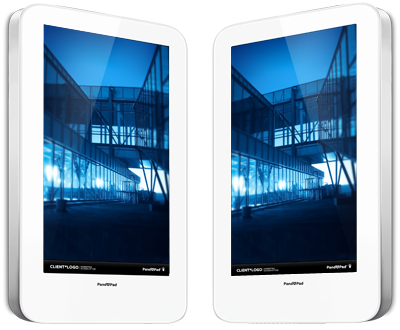

Portrait:
- width: 59cm
- depth: 8cm
- height: 99cm
- weight (approx.): 18kg
Design

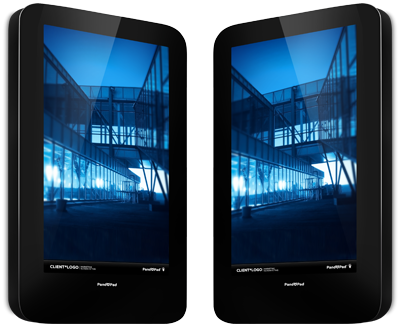

Modern cabinet, attractive design, suited for indoor installations. Made of steel coated in white or black plastic. Customer can specify other colours for plastic coating, or standard or metallic paint, or gold or silver imitation coating, or have it completely covered by a plastic foil. Spacious design provides for a simple fitout of all hardware components.
Maintenance
Secure (locked) service port for access to mounting screws and switches/wiring. All wiring and connections are inside the cabinet and cannot be physically accessed without the key. Service port is located at the top of the display frame, hidden from user’s view.
